Product Parameters
| Parameter | 30L Model | 40L Model | 50L Model |
| Medicine Tank Capacity | 30L | 40L | 50L |
| Aircraft Weight (Empty) | 28kg | 30kg | 34kg |
| Flight Altitude | ≤ 20m | ≤ 20m | ≤ 20m |
| Flight Time | 28min | 28min | 28min |
| Flight Radius | ≤ 5000m | ≤ 5000m | ≤ 5000m |
| Flight Speed | 1-12m/s | 1-12m/s | 1-12m/s |
| Operation Spray Width | 8-20m | 8-20m | 8-20m |
| Operation Endurance | 8min (Full Load) | 7.5min (Full Load) | 7min (Full Load) |
| Aerial Hovering | Can hover at any position | Can hover at any position | Can hover at any position |
| Spraying Flow Rate | 12-24L/min | 12-24L/min | 12-24L/min |

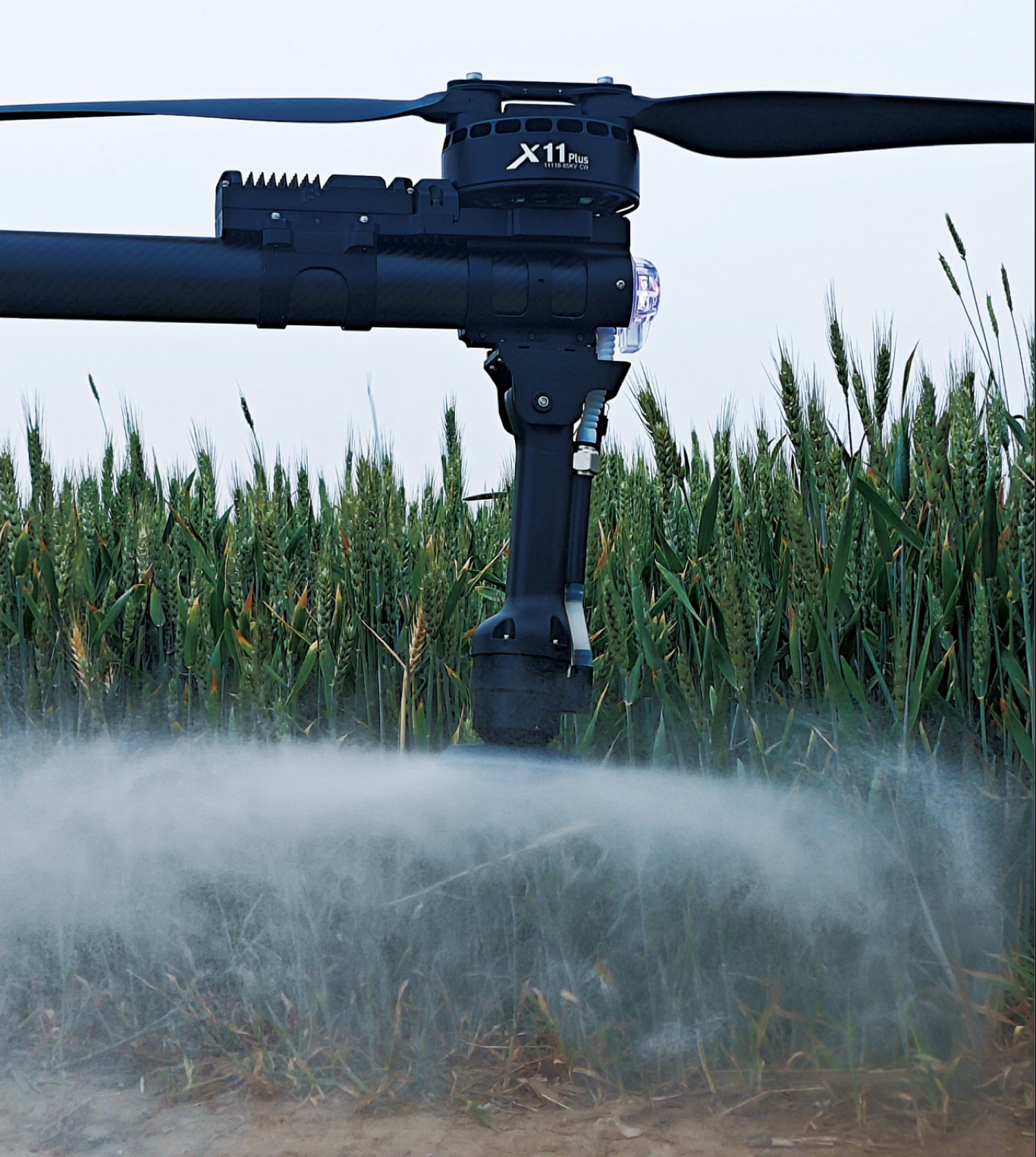

| Spraying System | Centrifugal Nozzle *2 | Centrifugal Nozzle *2 | Centrifugal Nozzle *2 |
| Prevention Efficiency | ≤ 3000 mu/day | ≤ 3500 mu/day | ≤ 4000 mu/day |
| Safe Takeoff/Landing Wind Speed | ≤ Level 6 | ≤ Level 6 | ≤ Level 6 |
| Battery Capacity | 14S 30000mAh | 18S 30000mAh | 18S 30000mAh |
| Battery Weight | 11.1kg | 14.6kg | 14.6kg |
| Unfolded Dimensions | 2432 x 2576 x 775mm | 2580 x 2758 x 820mm | 2919 x 3080 x 872mm |
| Folded Dimensions | 985 x 685 x 808mm | 1135 x 735 x 820mm | 1240 x 840 x 872mm |
note: 1 mu = 666.67 sq meters.
Core Features
Hybrid Power System: Extended-range petrol-electric hybrid system for ultra-long flight endurance.
High Efficiency: 15L fuel tank with a 16kW generator and 376cc engine displacement, allowing for larger workloads without the need for frequent battery charging or purchasing multiple power batteries.
Two-Stroke Forced Water-Cooled Engine: Designed for durability and consistent power output during heavy-duty operations.
Intelligent Navigation & Safety
Precision Return-to-Home (RTH): Utilizes Beidou/GPS technology for precise landing, even in areas with weak signals. The drone automatically returns if it exceeds the remote control range.
Electronic Fence & Low Voltage Protection: Features automated safety protocols that trigger a return to the takeoff point when the battery is low.

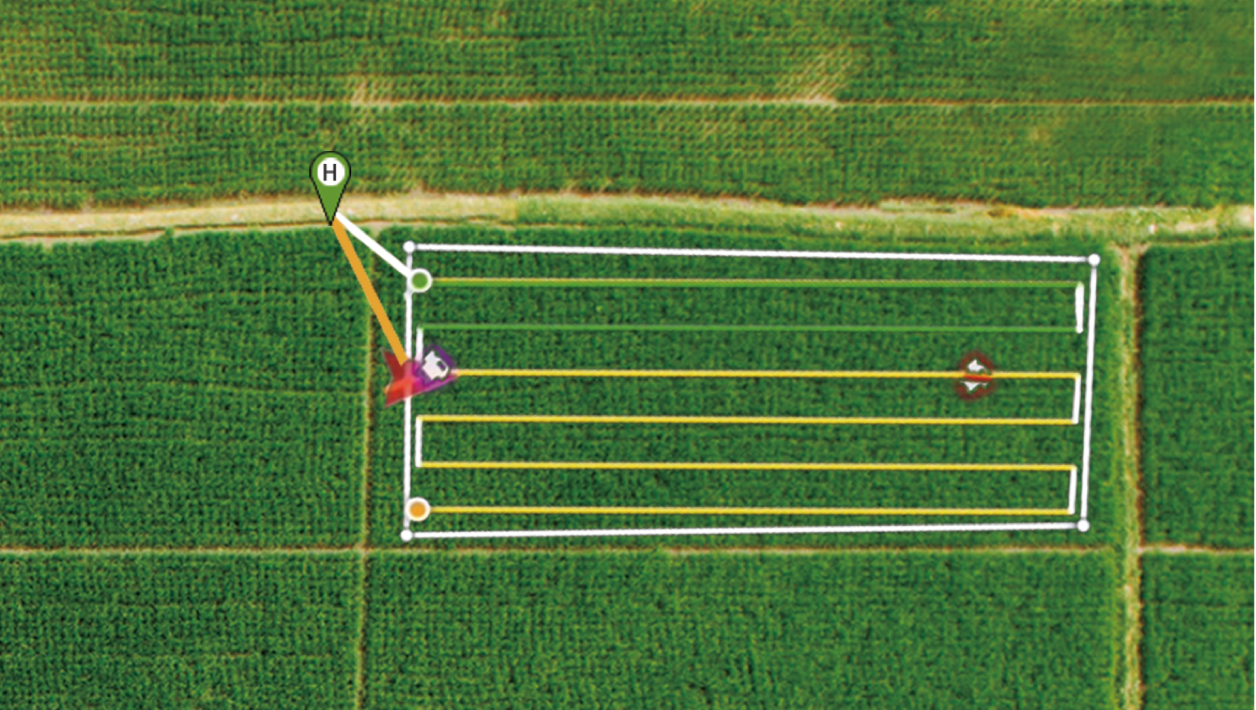

Smart Flight Control: Supports autonomous cruising, one-key takeoff/landing, and real-time mission editing.
Design & Spraying System
Aerodynamic Design: A streamlined, integrated airframe that is both minimalist and aesthetically pleasing.
Large Capacity Tank: Equipped for long-duration spraying missions with a leak-proof design to prevent crop damage.
Ground Station & Remote Control Specifications
7-Inch HD Display: High-brightness touchscreen (1920x1080 resolution) that remains clearly visible under direct sunlight.
Long-Range Link: Dual-antenna system providing a control radius of up to 10km under unobstructed conditions.
Android Embedded System: Supports multiple map types, including Google Maps and AutoNavi.
Durability: IP67-rated materials for water, dust, and drop resistance.
Operational Time: Up to 8 hours of battery life with 18W fast charging support.
Detailed Technical Parameters
Wheelbase: 3300 mm.
Unfolded Dimensions: 4900 x 4900 x 1600 mm.
Payload Capacity: Rated at 240 kg.
Maximum Takeoff Weight: 460 kg.
Fuel Consumption: 13 L/h at full power output.
Working Temperature: Rated for extreme environments from -40°C to 70°C.
